Running a MEAN web application in Docker containers on AWS

Written by: Vishal Kumar
10 min read

The rate of adoption of Docker as a containerized solution is soaring. A lot of companies are now using Docker containers to run apps. In a lot of scenarios, using Docker containers can be a better approach than spinning up a full-blown virtual machine.

In this post, I’ll break down all the steps I took to successfully install and run a web application built on the MEAN stack (MongoDB, Express, AngularJS, and Node.js). I hosted the application in Docker containers on Amazon Web Services (AWS).

Also, I ran the MongoDB database and the web application in separate containers. There are lots of benefits to this approach of having isolated environments:

  1. Since each container has its own runtime environment, it’s easy to modify the environment of one application component without affecting other parts. We can change the installed software or try out different versions of the softwares, until we figure out the best possible setup for that specific component.

  2. Since our application components are isolated, security issues are easy to deal with. If a container is attacked or a malicious script ends up being inadvertently run as part of an update, our other containers are still safe.

  3. Since it is easy to switch out and change the connected containers, testing becomes a lot easier. For example, if we want to test our web application with different sets of data, we can do that easily by connecting it to different containers set up for different database environments.

MEAN Web Framework

The web application that we’re going to run is the framework code for MEAN.JS. This full-stack JavaScript solution builds fast, robust, and maintainable production web applications using MongoDB, Express, AngularJS, and Node.js.

Another great advantage of MEAN.JS is that we can use Yeoman Generators to create the scaffolding for our application in minutes. It also has CRUD generators which I have used heavily when adding new features to the application. The best part is that it is already well set up to support Docker deployment. It comes with a Dockerfile that can be built to create the container image, although we will use a prebuilt image to do it even faster (more on this later).

Running Docker on an Amazon Instance

You might already be aware that you can use basic AWS services free for a full year. The following steps will walk you through how to configure and run a virtual machine on AWS along with Docker service:

  1. To begin, create your free account on Make sure to choose the Basic (Free) support plan. You will be redirected the AWS welcome page.

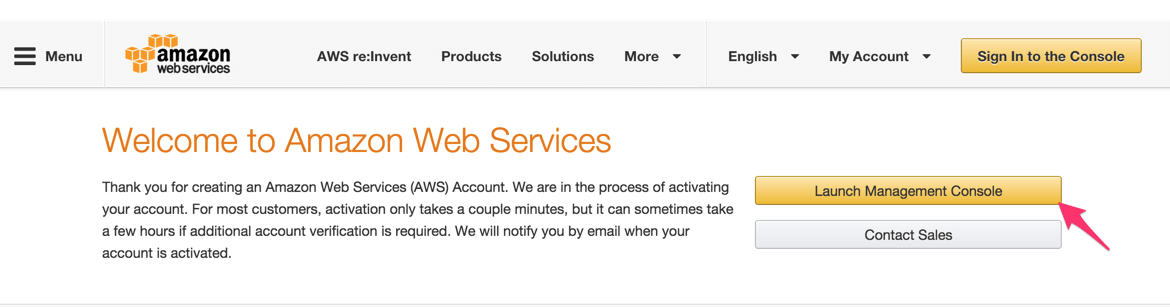

  2. On this page, click on Launch Management Console.

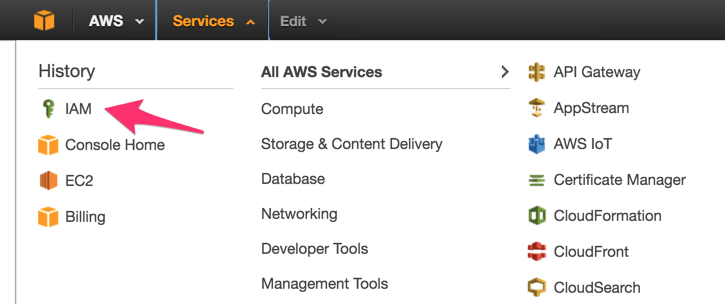

  1. We will first go through the steps to create a user with the required credentials to manage our instance. Go to Services and then IAM.

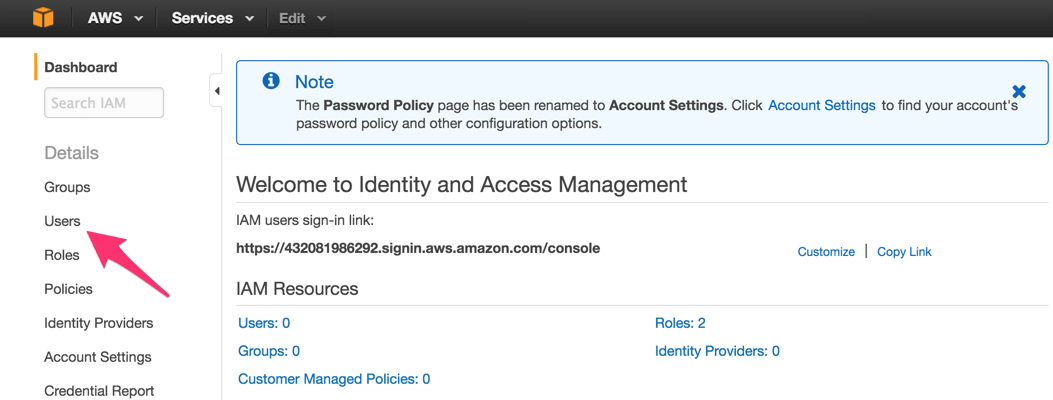

  1. Go to the Users link on the left.

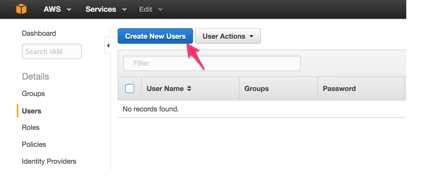

  1. Click Create New Users.

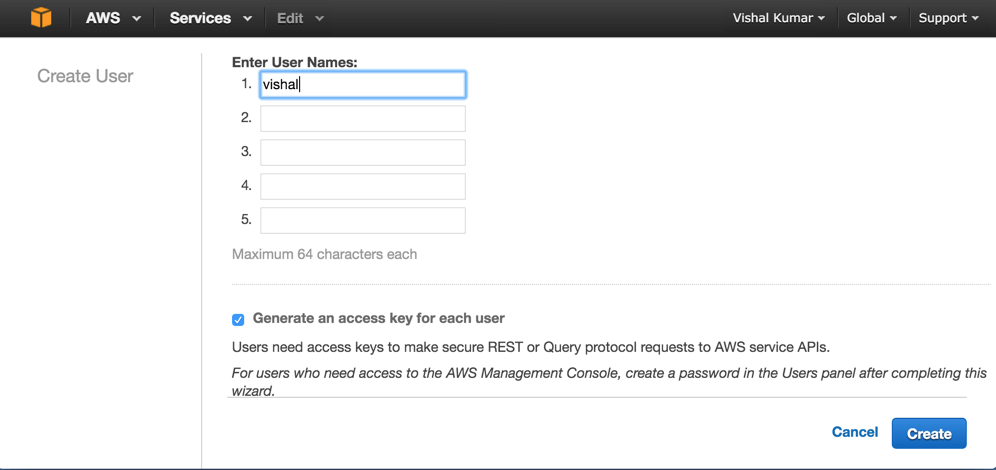

  1. Create a new user by providing a username. Make sure you have the checkbox to Generate an access key for each user checked.

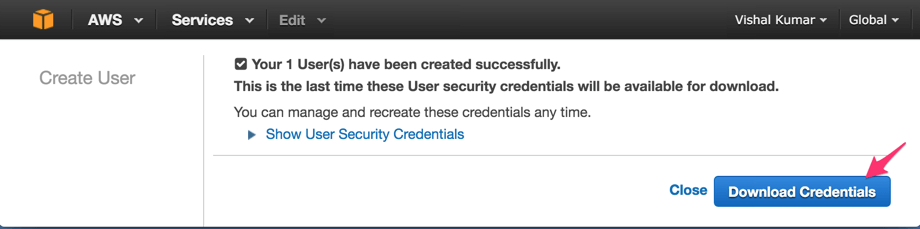

  1. Once the user is created, you will get the option to Download Credentials for this user. Download the file. This file will have the Access Key Id and the Secret Access Key for this user. We will need to use these credentials to connect remotely to AWS.

  1. The recommended approach for using credentials when connecting remotely to AWS is to keep the credentials in a file at the path ~/.aws/credentials. Create this path if it does not exist in your local computer and then create a file with the name credentials. The content of this file should look like this:

aws_access_key_id = [access key from the downloaded credential file]
aws_secret_access_key = [secret access key from the downloaded credential file]

After creating the user and storing his credentials locally, we will also need to give the required permissions to this user in AWS.

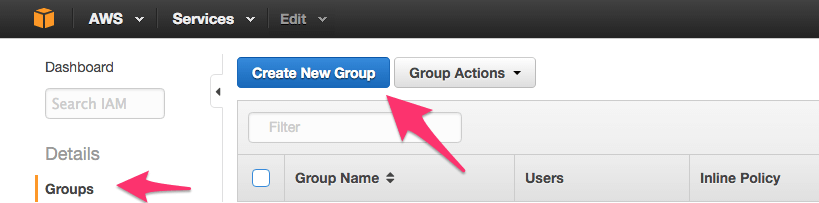

  1. Go to Services->IAM->Groups. Click Create New Group.

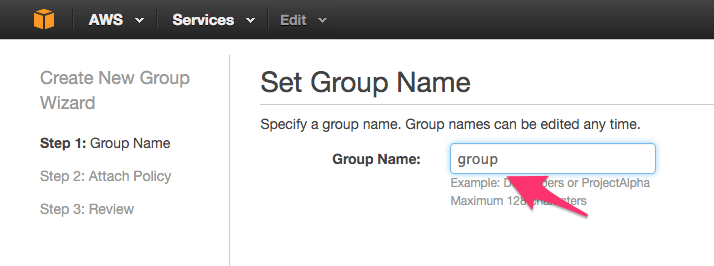

  1. Go through the wizard steps to create the new user group. Enter the groupname and click Next.

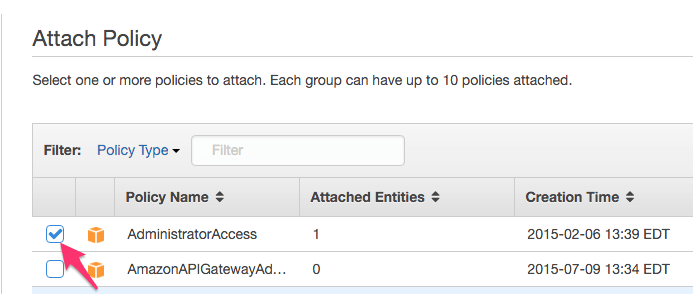

  1. You will then see the option to attach a Policy. Check the first option, Administrator Access, and click Next.

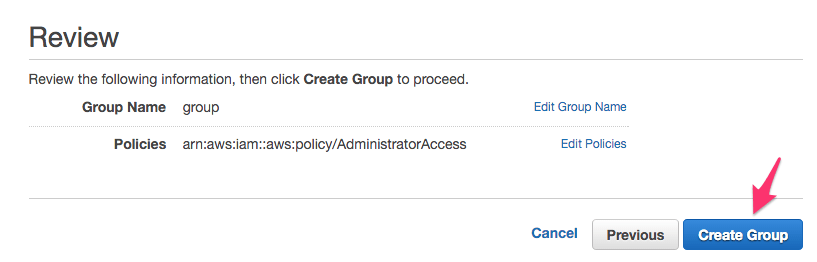

  1. You will see a Review screen. Click Create Group to finally create the group.

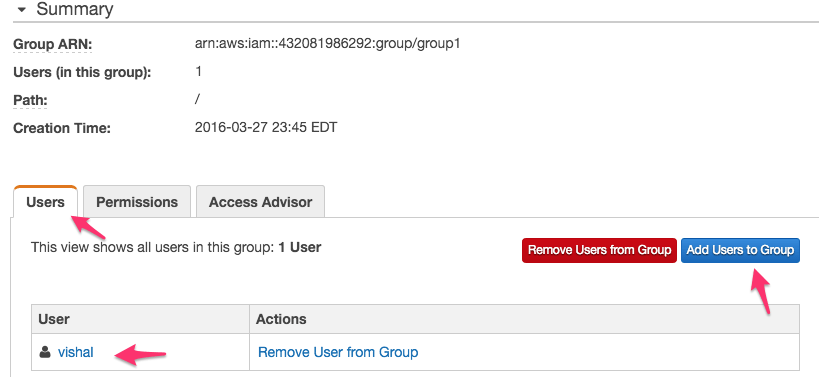

  1. Once the group is created, click on the name of the group to see a screen to manage users, permissions, etc. Add the user that you previously created to this group by clicking Add Users to Group.

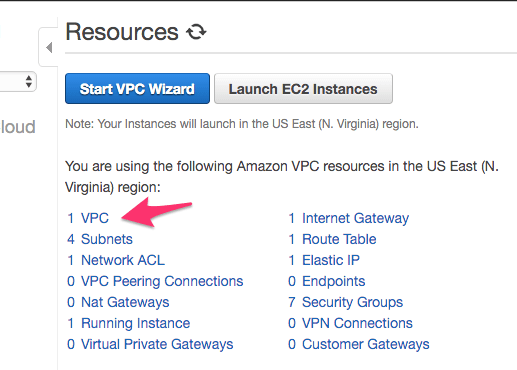

  1. We will also need a vpc-id to launch our instance. While still logged on to AWS Console, click Services->VPC. Click on the link to see your VPC details. Copy the vpc-id from the grid view that appears. Now we are all set to launch our instance.

To launch a new instance on AWS remotely from your computer, open a new shell window. Then use the Docker Machine create command to create a new EC2 instance. Use the amazonec2-vpc-id flag to specify the vpc-id. Use the amazonec2-zone flag to supply the zone in which your instance should exist. Finally, specify the name by which you would like to refer to the instance.

$ docker-machine create --driver amazonec2  --amazonec2-vpc-id [vpc-id-copied-in-previous-step] --amazonec2-zone c aws07
Running pre-create checks...
Creating machine...
(aws01) Launching instance...
Waiting for machine to be running, this may take a few minutes...
Detecting operating system of created instance...
Waiting for SSH to be available...
Detecting the provisioner...
Provisioning with ubuntu(systemd)...
Installing Docker...
Copying certs to the local machine directory...
Copying certs to the remote machine...
Setting Docker configuration on the remote daemon...
Checking connection to Docker...
Docker is up and running!
To see how to connect your Docker Client to the Docker Engine running on this virtual machine, run: docker-machine env aws07

Once this instance is launched and ready for use, we can tell docker execute commands against aws07 as follows:

$ eval $(docker-machine env aws07)

Running MongoDB Database as a Container

Now that we have Docker running on our Amazon instance, we can go ahead and run our containers.

As I mentioned before, we’re going to run our MongoDB database and our web application on separate containers. I chose the official repo for Mongo on the docker repository. We can pull this image and run it as a detached container in one simple step:

$ docker run --name mymongodb -d mongo

The last argument mongo is the name of the image from which it should create the container. Docker will first search for this image locally. When it doesn't find it, it will go ahead and download it and all the base images that it is dependent on. Convenient!

Docker will then run this image as a container. -d flag ensures that it is run in detached mode (in the background) so that we can use this same shell to run our other commands. We can do a quick check after this to make sure that this container is up and running by using the docker ps command:

$ docker ps -a
2f93a31d4a3d mongo:latest "/ mong About a minute ago Up About a minute
27017/tcp mymongodb

The startup script script for this image already runs the mongo service listening on 27017 port by default. So there is literally nothing else we had to do here except for that one docker run command.

Running the MEAN Stack Container

The next phase of this project is to run our web application as a separate container.

The MEAN stack code base has a lot of dependencies like Node, Bower, Grunt, etc. But once again, we don't need to worry about installing them if we have an image that already has all these dependencies. Turns out there is an image on the Docker Hub that already has everything we need.

Once again, we will pull it in and run it with just one command:

$ docker run -i -t --name mymeanjs --link mymongodb:db_1 -p 80:3000 maccam912/meanjs:latest bash
Status: Downloaded newer image for maccam912/meanjs:latest

Now there is a lot going on with this single command. To be honest, it took me some time to get it exactly right.

  1. The most important piece here is the --link mymongodb:db_1 argument. It adds a link between this container and our mymongodb container. This way, our web application is able to connect to the database running on the mymongodb container. db_1 is the alias name that we’re choosing to reference this connected container. Our MEAN application is set to use db_1, so it’s important to keep that name.

  2. Another important argument is -p 80:3000, where we’re mapping the 3000 port on the container to port 80 on the host machine. We know that web applications are accessed through the default port of 80 using the HTTP protocol. Our MEAN application is set to run on port 3000. This mapping enables us to access the same application from outside the container over the host port 80.

  3. We of course have to specify the image from which the container should be built. As we discussed before, maccam912/meanjs:latest is the image we’ll use for this container.

  4. The -i flag is for interactive mode, and -t is to allocate a pseudo terminal. This will essentially allow us to connect our terminal with the stdin and stdout streams of the container. This stackoverflow question explains it in a little more detail.

  5. The argument bash hooks us into the container where we will run the required commands to get our MEAN application running. We can bash into a previously running Docker container, but here we are doing all that with just one command.

hbspt.cta.load(1169977, 'a48f90f2-519c-4f75-a875-d9dd7c4827d6', {});

Building and Running our MEAN Application

Now that we’re inside our container, running the ls command shows us many folders including one called Development. We will use this folder for our source code.

cd into this folder and run git clone to get the source code for our MEAN.JS application from GitHub:

root@7f4e72af1cf0:/# cd Development/
root@7f4e72af1cf0:/Development# git clone meanjs
Cloning into 'meanjs'... remote:
Checking connectivity... done.

cd into our MEAN.JS folder. We can run npm install to download all the package dependencies:

root@7f4e72af1cf0:/Development# cd meanjs
root@7f4e72af1cf0:/Development/meanjs# ls
Dockerfile Procfile app bower.json config fig.yml gruntfile.js karma.conf.js package.json public scripts server.js
root@7f4e72af1cf0:/Development/meanjs# npm install

A couple of hiccups to watch out for: For some reason, my npm install hung during a download. So I used Ctrl + C to terminate it, deleted all packages to start from scratch, and ran npm install again. Thankfully, this time it worked:

root@7f4e72af1cf0:/Development/meanjs# rm -rf node_modules/
root@7f4e72af1cf0:/Development/meanjs# npm install

Install the front-end dependencies running by running bower. Since I’m logged in as the super user, bower doesn't like it. But it does give me an option to still run it by using the --allow-root option:

root@7f4e72af1cf0:/Development/meanjs# bower install
bower ESUDO Cannot be run with sudo
You can however run a command with sudo using --allow-root option
root@7f4e72af1cf0:/Development/meanjs# bower install --allow-root

Run our grunt task to run the linter and minimize the js and css files:

root@7f4e72af1cf0:/Development/meanjs# grunt build
Done, without errors.

Now, we are ready to run our application. Our MEAN stacks looks for a configuration flag called NODE_ENV, which we will set to production and use the default grunt task to run our application. If you did all the steps right, you should see this final output:

root@7f4e72af1cf0:/Development/meanjs# NODE_ENV=production grunt
MEAN.JS application started
Environment: production
Port: 3000
Database: mongodb://

Validating Our Application from the Browser

Our application would have given errors if there was some problem running it or if the database connection failed. Since everything looks good, it's time to finally access our web application through the browser.

But first, we’ll need to expose our virtual machine's port 80 over HTTP.

  1. Go back to the EC2 dashboard.

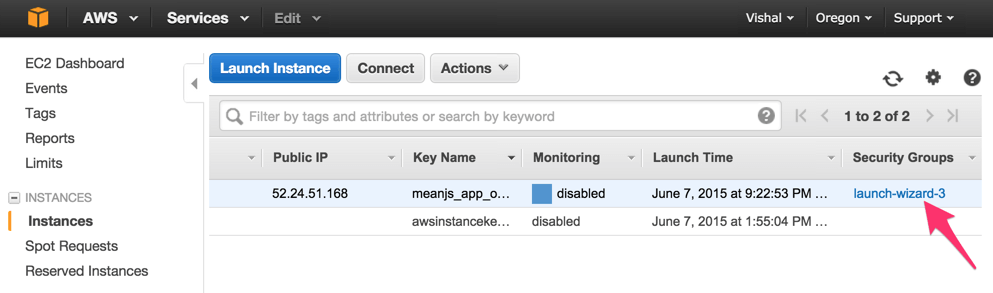

  2. Click on the security group link for the given instance. You should see the settings page for the security group.

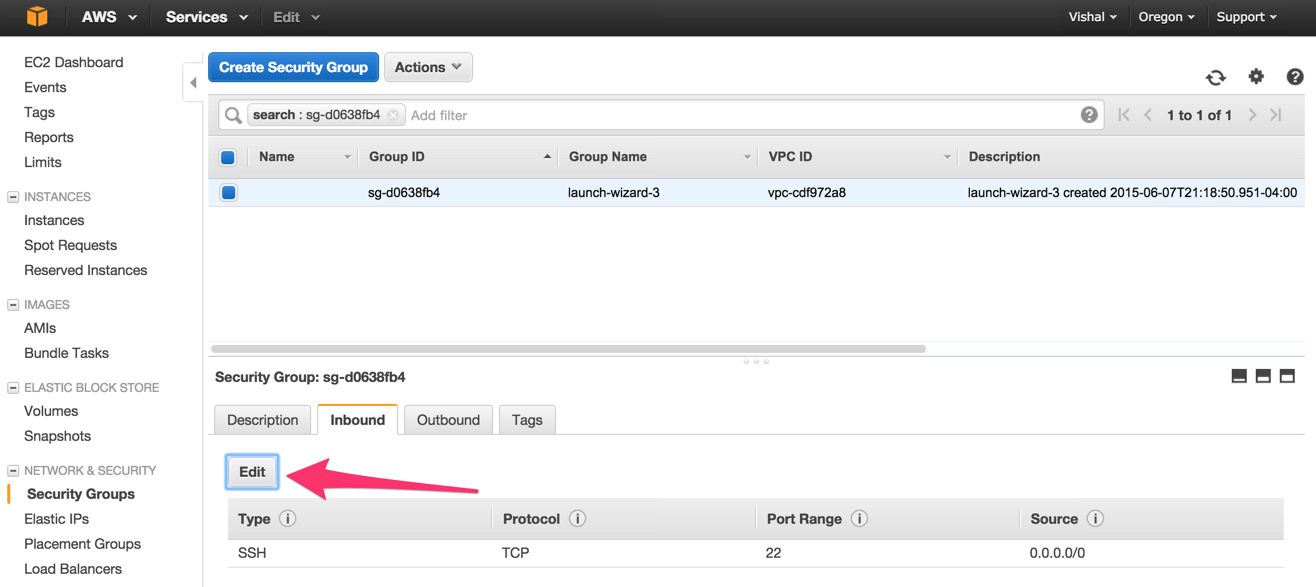

  1. Click the "Inbound" tab at the bottom, and then click the "Edit" link. You should see that SSH is already added. Now we need to add HTTP to the list of inbound rules.

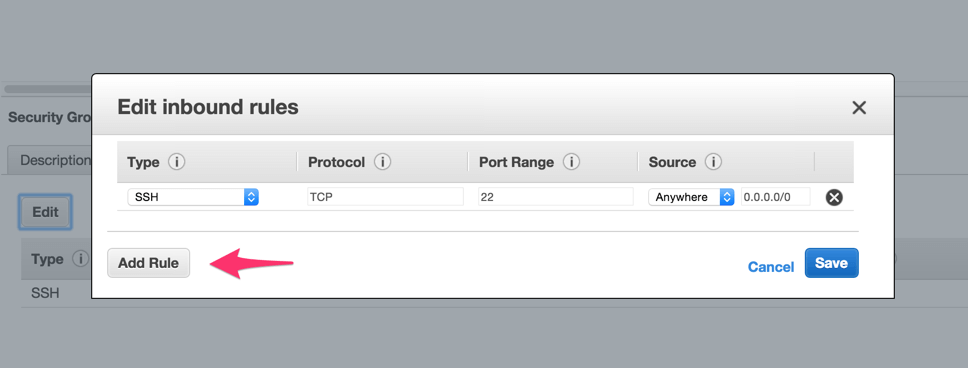

  1. Click "Add Rule."

  1. Select HTTP from the dropdown menu and leave the default setting of port 80 for the Port Range field. Click "Save."

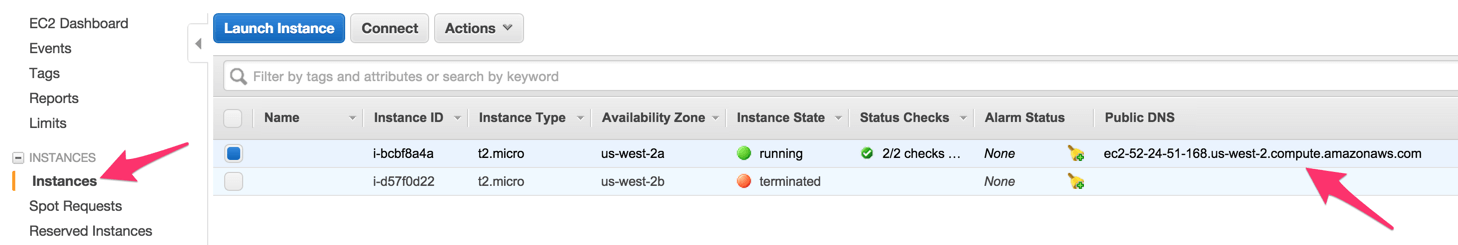

  2. Pick up the URL to our instance from the Public DNS column and hit that URL from the browser.

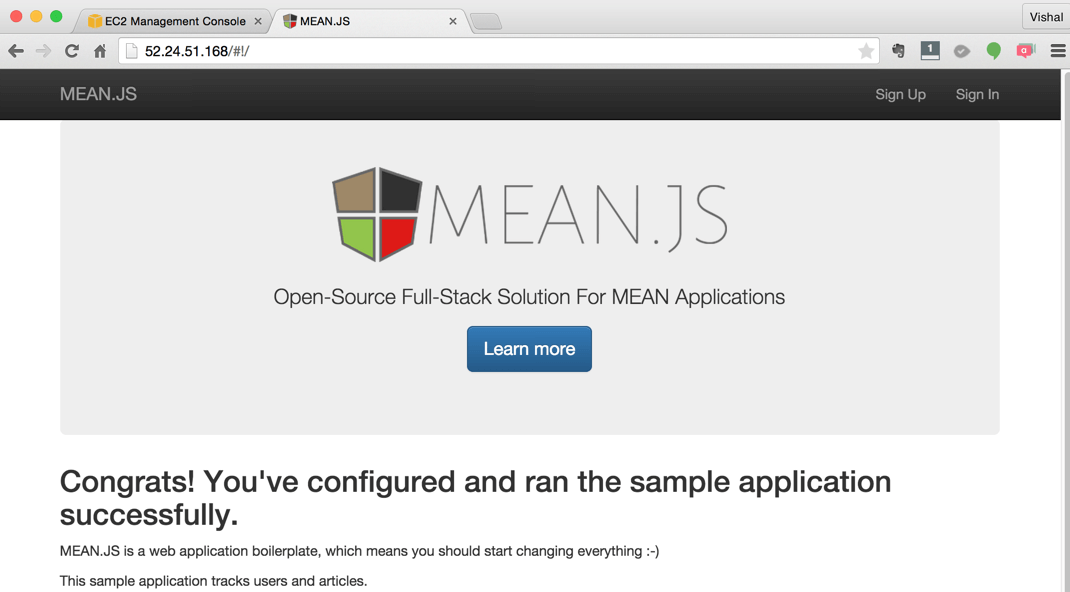

You should see the homepage of our fabulous application. You can validate it by creating some user accounts and signing in to the app.

So that's it. We’ve managed to run our application on AWS inside isolated Docker containers. There were a lot of steps involved, but at the crux of it all, we really needed to run only two smart Docker run commands to containerize our application.
